Θερμοστάτης θερμοσίφωνα κουμπωτός

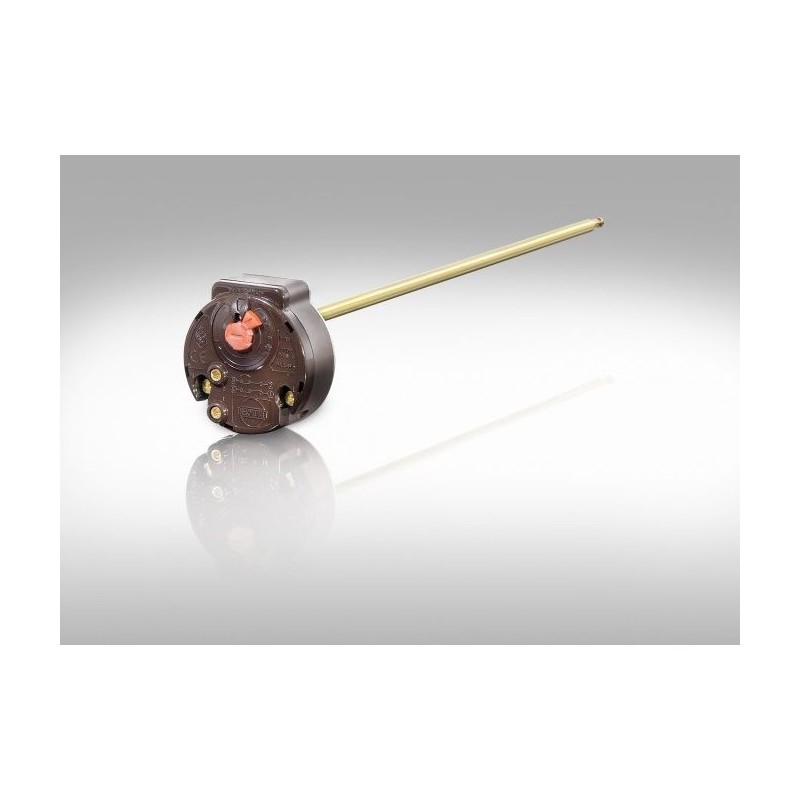

Θερμοστάτης Θερμοσιφώνου RTS

Sensor Lenght: 269mm

Thermostat type

Single-phase stem/ rod thermostat
Functional cut-off    Unipolar
Safety cut-out    Bi-polar with bimetalic disk
Safety reset    Manual
Max temperature value    T 105°C
Electrical nominal tension    16A 250V AC; 20A 250V AC
Max functional value    According to Customer specification (Max 90°C)
Max safety value    According to Customer specification (Max 120°C)
Temperature selection range    From 20°C to Max
Thermic differencial    8°C +/- 4
Standard stem lenght    280mm
Stem lenght on request    220mm; 350mm; 450mm (custom solutions available)
Electrical connection    Quick fast-on connection 6,3x1,0mm
Assembly

External regulation    Available

Notes    Thermostat designed for an easy & quick matching with our flange or screw-in heating elements
